What really got me excited about the Infrasonic Quartet Sound Card was the (4 ) 1/4 inch input/ output access (see pics 7 & 8). I like the 1/4 inch cords because its an alternative to the common audio RCA cables, and it sounds a lot more cleaner. Note: Make sure to run a balanced 1/4 cords to obtain stereo sound.
The Infrasonic Quartet Sound Card is installed through the computer's PCI slot (see pics 5 & 6). This allows the card to perform its job with out using too much of the motherboard's resources, compared to the "stock" sound cards that comes with the PC.
This product also comes with an external I/O cable, that is inserted into the ISD link port located in the rear of the sound card (see pic 3). The external I/O cord allows digital access to the sound card, when needed.
The Infrasonic Quartet also comes with an impressive Control Panel (see pic 9). It's pretty simple to use! It allows the user to adjust the gains for each 1/4 inch port that the product provides. The mixer tab within the control panel allows you to get more detailed in tweaking the sound levels. Another tab within the control panel is the "Free Mixer," with a graph to allow the user to fine tune the sound.
This sound card works with most audio recording and producing software. I currently use both Nuendo and Sound Forge with the Infrasonic Quartet sound card. Overall, the sound card is amazing. The quality is rock solid! The user control panel is also fairly easy to use and tune.

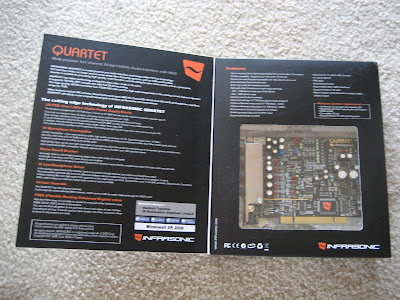

1. Quartet in Sales Box
2. Quartet- Front View
3. Quartet- Side View
4. Quartet- with External I/O Cable
5. Quartet- Connect to PCI Slot (Side View)
6. Quartet- Connected to PCI slot (Bottom View)
7. Quartet- Back View of PC
8. Quartet- Back View of PC with 1/4 audio cables connected
9. Infrasonic Quartet- Control PanelTechnical Specs:
| ANALOG LINE INPUT | ||
| Type | 2 x Unbalanced 1/4” Stereo Input | |
| Level | -10dBu Nominal (@-18dBFS) , +10.4dBu max, deviation +/- 0.1dB | |
| Frequency Response | 20Hz to 20kHz, +/- 0.05 dB | |
| THD + N | 0.0012 dB % A-weighted (1kHz @ -3dBFS) | |
| Dynamic Range | 110 dB A-weighted (1kHz @ -60dBFS) | |
| Impedance | 10k ohm | |
| A/D Converter | Type Dynamic Range S/(N+D) Ratio Interchannel Isolation | 24bit, 192KHz 110/113dB (@ -60dBFS A-Weighted) -90/-100dB (@ -1dBFS, measurement method) 105dB |
ANALOG LINE OUTPUT | ||
| Type | 2 x Unbalanced 1/4” Stereo Output | |
| Level | -10dBu Nominal (@-18dBFS) , +10.2dBu max, deviation +/- 0.1dB | |
| ATT Range | 0dB ~ -48dB (255 linear step size) | |
| Frequency Response | 20Hz to 20kHz, +/- 0.02 dB | |
| THD + N | 0.0012 % A-weighted (@ -3dBFS) | |
| Dynamic Range | 113dB dB A-weighted | |
| Load Impedance | 32 ~ 600 ohm (1/4” Stereo) | |
| D/A Converter | Type Dynamic Range S/(N+D) Ratio Interchannel Isolation | 24bit, 192KHz 8 times digital filter 115dB (@ -60dBFS with A-Weighted) -97dB (@ -1dBFS, measurement method) 110dB |
| MICROPHONE PRE-AMPLIFIER | ||
| Type | Balanced TRS (+48V Phantom Power support) | |
| Max Input Level | -2dBu max (PAD OFF), +17.0dBu max (PAD ON) | |
| Gain Range | +20dB / +40dB / +60dB (PAD OFF), 0dB min ~ +40dB max | |
| Equivalent Input Noise | -127 dBu (22kHz BW, +60dB Gain, 150 ohm) | |
| THD + N | 0.002% A-weighted (1kHz @ gain +20dB) | |
| Frequency Response | 10Hz ~ 50kHz @+50dB (40Hz~15kHz : +0.06, -0.58dB) Low Cut Freq : 75Hz @+3dB | |
| Impedance | 1.5K Ohm | |
| Hi-Z Instrument INPUT | ||
| Type | Unbalanced 1/4” | |
| Level | -16dBu Nominal (@-16dBFS) , +2.4dBu max | |
| Frequency Response | 20Hz to 20kHz, +/- 0.24 dB | |
| THD + N | 0.06% A-weighted (1kHz @ -3dBFS) | |
| Dynamic Range | TBD dB A-weighted (1kHz @ -60dBFS) | |
| Impedance | 150K Ohm | |
| MIDI I/O | ||
| Type | 5P-DIN Standard MIDI Connector | |
| DIGITAL I/O | ||
| Type | RCA (Coaxial) / Optical Jack | |
| Impedance | 75ohm | |
| Format | IEC-60958 Professional / Consumer | |
| Sample rate | 44.1kHz, 48.0kHz, 88.2kHz, 96.0kHz, 192kHz | |
| MINIMUM SYSTEM REQUIREMENTS | ||
| Intel Pentium 4 or equivalent and compatible CPU Motherboard with chipset supporting the Intel Pentium 4 256MB of RAM One available PCI slot Microsoft Windows XP, 2000 operating system | ||
For more information on this product or the company- visit: http://www.auzentech.com/
Download the F.A.Q document: http://www.mediafire.com/download.php?eyekzmeozh4
